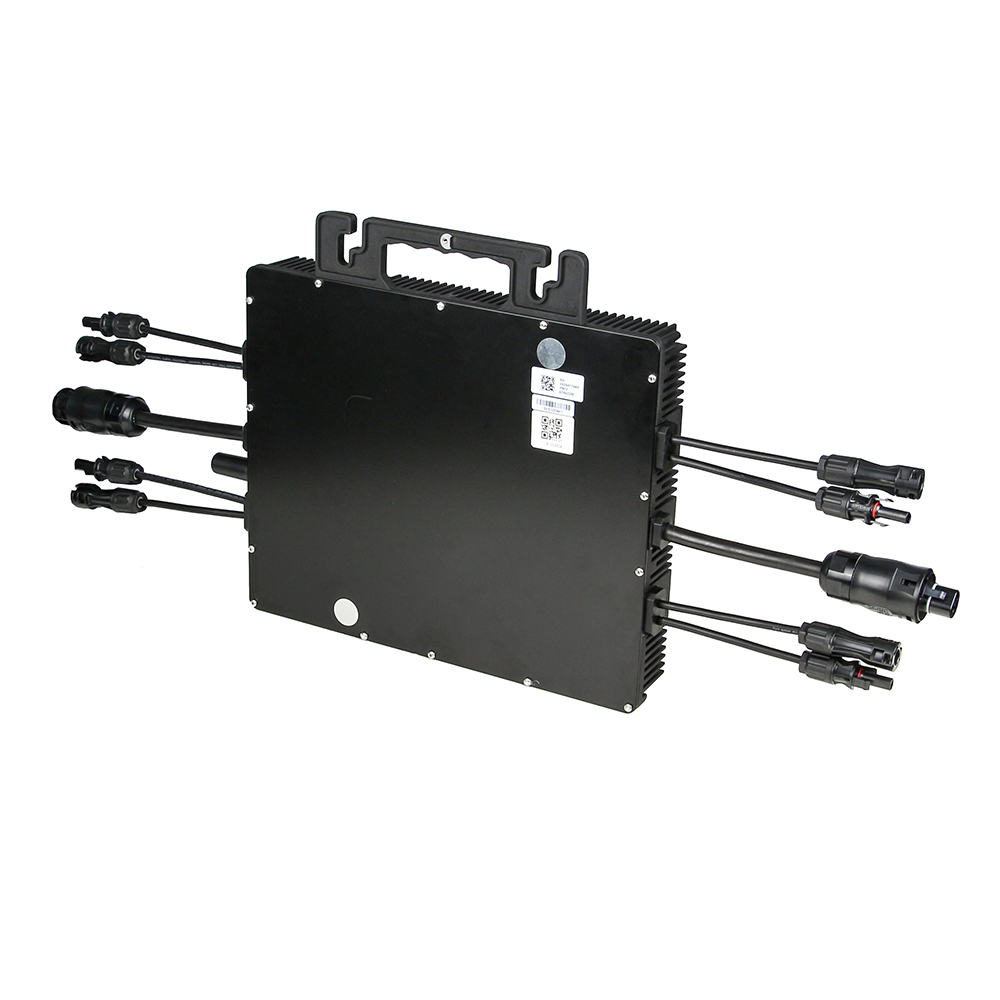

Micro inverter 1600W

Category: PV · HUB controller

Model: 2 independent MPPTs with an efficiency of up to 96%;

Maximum DC input current of 13.5A, suitable for mainstream photovoltaic modules in the market;

Product Details

Specification	Details
Model	TM-L1600M
Recommended PV Module Power	280W-550W
Start-up Voltage	28V
MPPT Voltage Range	28-55V
Full load voltage range	36-55V
Max. Input Voltage	60V
Max. Input Current	13A*4
Max. DC Short Circuit Current	19A*4
Number of MPPTs	4
Ambient Temperature Range	-40℃ to +65℃
Dimensions (WxHxD)	312mm x 301mm x 43mm
Weight	7kg
Enclosure Rating	IP 67
Cooling	Natural Convection – No Fans
Type of Isolation	High Frequency Transformers
Overvoltage category	II(PV), III(Mains)
Inverter topology	Isolated
Certifications	VIEC62109-1, IEC62109-2:IEC61000-6; VDE4105; RF2019; NEN-EN 50549-1:2019; PN-EN 50549-1:2019
